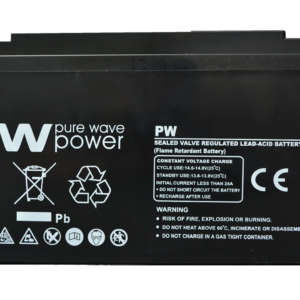

PW-L SERIES
General Features
Reliable Construction
The extra strong construction ABS container reduces case bulging and plate warping, ensuring long life and high performance.
Excellent Recovery from Deep Discharge
Unique technical processes are used into the grid alloy and electrolyte additives, so that the battery can be recharged easily to a normal level even after being over-discharged.
Higher Power Density
A special assembly technology is used to enhance power density to a considerable level.
Higher Reliability and Quality
Through out the whole manufacturing process, PPM and ISO 9001 are carried out to make sure that the product reliability and defect ratio meet with the PPM standard.
Valve regulating
Perfect venting system, which operates under low pressure, is designed to release excess gas and keep the internal pressure within the optimum range of safe and efficient performance.
| Model | Voltage | Capacity | Dimension | Weight | Terminal | Maximum Discharge Current | Maximum Charge Current | Internal Resistance |
|||
| 20hr | Length | Width | Height | Total Height |
|||||||
| PW-L12-33 | 12 | 33 | 195 | 130 | 159 | 180 | 10.2 | F7/F11 | 330 | 9.9 | 9 |
| PW-L12-38 | 12 | 38 | 198 | 166 | 171 | 171 | 12.8 | F1/F2 | 72 | 2.16 | 25 |
| PW-L12-40 | 12 | 40 | 198 | 166 | 171 | 171 | 13.0 | F1/F2 | 75 | 2.25 | 25 |
| PW-L12-45 | 12 | 45 | 198 | 166 | 171 | 171 | 13.5 | F1/F2 | 80 | 2.4 | 25 |
| PW-L12-55 | 12 | 55 | 229 | 138 | 210 | 235 | 18 | F1/F15 | 550 | 16.5 | 6 |
| PW-L12-60 | 12 | 60 | 260 | 169 | 210 | 235 | 20.5 | F11/F15 | 600 | 18 | 6 |
| PW-L12-65 | 12 | 65 | 350 | 167 | 180 | 183 | 21 | F5/F11 | 650 | 19.5 | 6 |
| PW-L12-70 | 12 | 70 | 350 | 167 | 180 | 183 | 22.5 | F5/F11 | 700 | 21 | 6 |
| PW-L12-70S | 12 | 70 | 260 | 169 | 210 | 235 | 21.5 | F11/F15 | 700 | 21 | 6 |
| PW-L12-75 | 12 | 75 | 260 | 169 | 210 | 235 | 23.5 | F11/F15 | 750 | 22.5 | 6 |
| PW-L12-80 | 12 | 80 | 350 | 167 | 180 | 183 | 24 | F5/F12 | 800 | 24 | 5.5 |
| PW-L12-85 | 12 | 85 | 306.5 | 168.5 | 210 | 235 | 26 | F12/F15 | 850 | 25.5 | 5.2 |
| PW-L12-90 | 12 | 90 | 306.5 | 168.5 | 210 | 235 | 28.5 | F12/F15 | 900 | 27 | 5.2 |
| PW-L12-100 | 12 | 100 | 328 | 172 | 222 | 222 | 30 | F5/F12 | 1000 | 30 | 5 |
| PW-L12-100S | 12 | 100 | 306.5 | 168.5 | 210 | 235 | 29.0.0 | F12/F15 | 1000 | 30 | 4.8 |
| PW-L12-120 | 12 | 120 | 407 | 177 | 225 | 225 | 35 | F5/F12 | 1200 | 36 | 4.5 |
| PW-L12-110 | 12 | 110 | 328 | 172 | 222 | 222 | 32 | F5/F12 | 1100 | 33 | 4 |
| PW-L12-134 | 12 | 134 | 344 | 173 | 280 | 285 | 41.5 | F5/F12 | 1340 | 40.2 | 4.5 |
| PW-L12-145 | 12 | 145 | 344 | 173 | 280 | 285 | 44 | F5/F12 | 1450 | 43.5 | 4.5 |
| PW-L12-150 | 12 | 150 | 483 | 170 | 240 | 240 | 44.5 | F5/F12 | 1500 | 45 | 4 |
| PW-L12-160 | 12 | 160 | 530 | 209 | 214 | 219 | 50 | F12/F16 | 1600 | 48 | 4.5 |
| PW-L12-180 | 12 | 180 | 530 | 209 | 214 | 219 | 53 | F12/F16 | 1800 | 54 | 4 |
| PW-L12-200F16 | 12 | 200 | 522 | 240 | 219 | 240 | 60 | F16 | 2000 | 60 | 4 |
| PW-L12-200F10 | 12 | 200 | 522 | 240 | 223 | 223 | 60 | F10 | 2000 | 60 | 4 |
| PW-L12-225F16 | 12 | 225 | 522 | 240 | 219 | 240 | 65 | F16 | 2250 | 67.5 | 3.8 |
| PW-L12-225F10 | 12 | 225 | 522 | 240 | 223 | 223 | 65 | F10 | 2250 | 67.5 | 3.8 |
| PW-L12-230 | 12 | 230 | 521 | 269 | 203 | 208 | 67 | F12 | 2300 | 69 | 4 |
Main Application
Uninterruptible power supplies
Telecommunication systems
Communication equipment
Power tools Solar powered systems
Fire & security systems
